Shackles for rear leaf springs
- • 9 inch long up-down bars joined by 2 cross plates
- • Up-down bars are 2 inches wide
- • 3/8 inch thick bar on the outside
- • 1/4 inch thick for all else
- • This design offers a stiff outside bar for strength, with supported cross plates, and more flexible inner plate
- • Adjustable height for 1 inch, 1.5 and 2 inch lift
- • Weight is 4.43 lb for each shackle

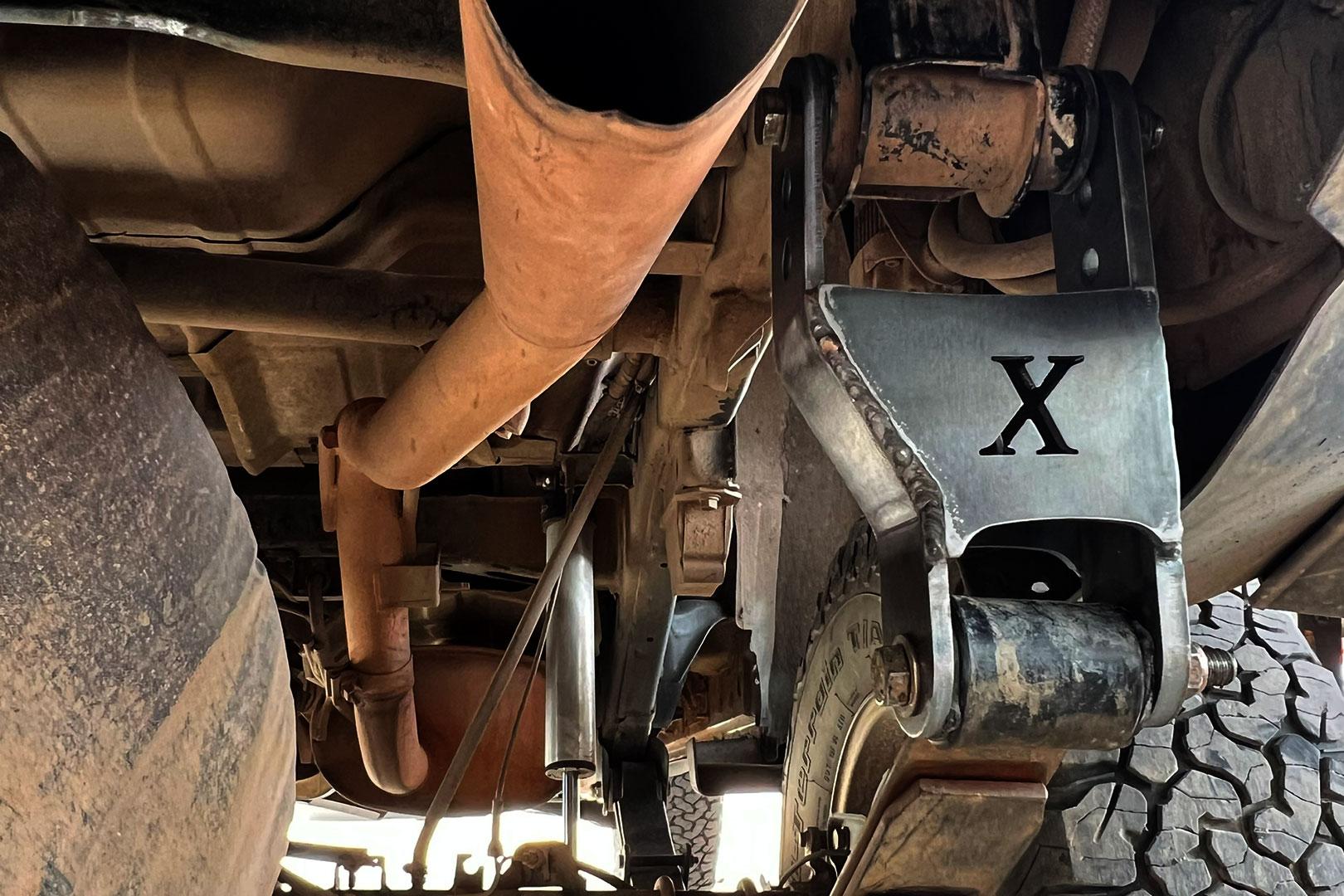

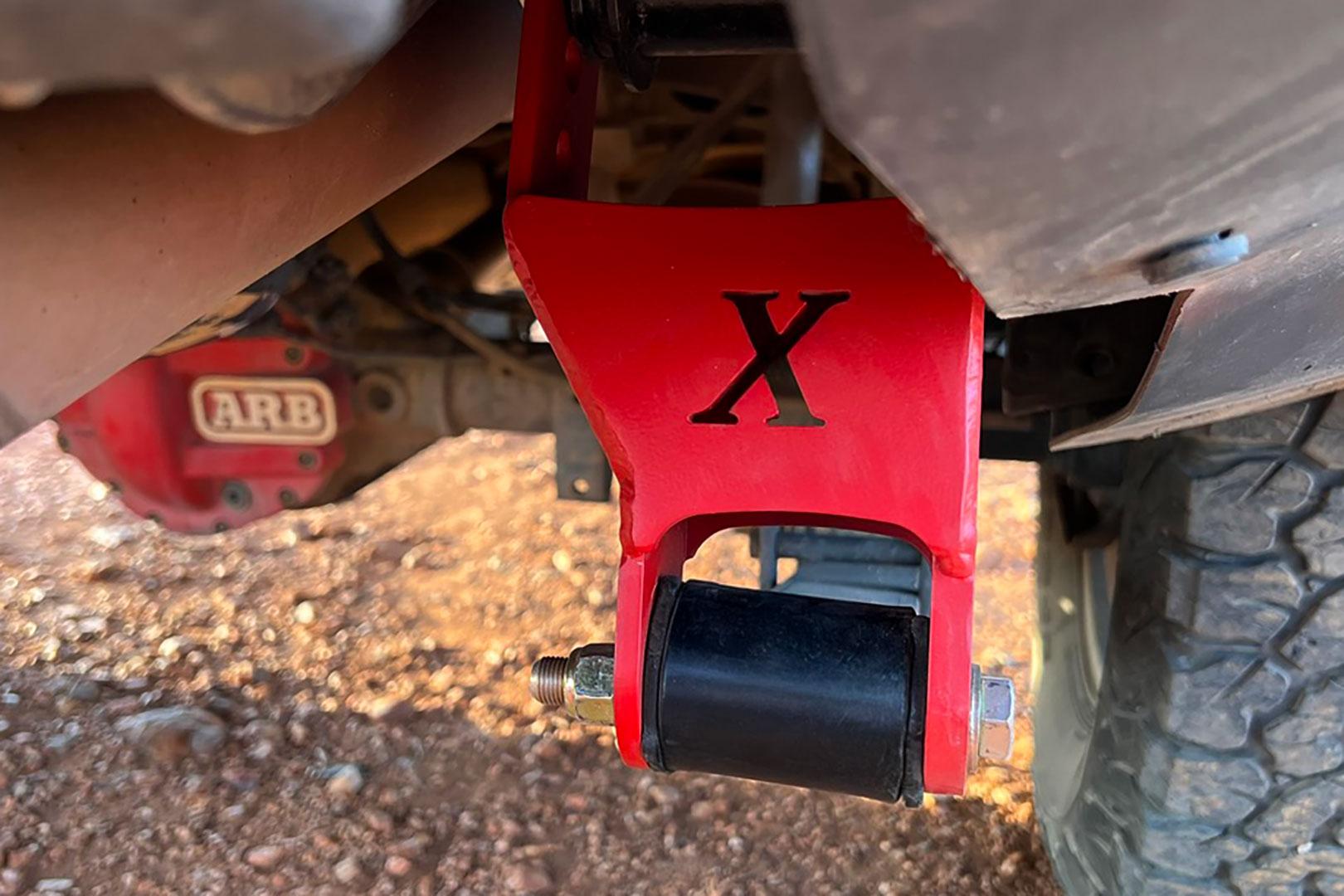

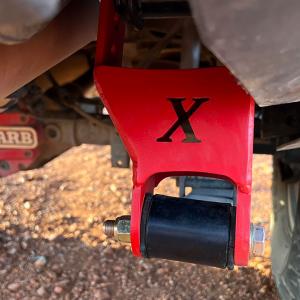

- • Set of 2, attached to rear leaf springs

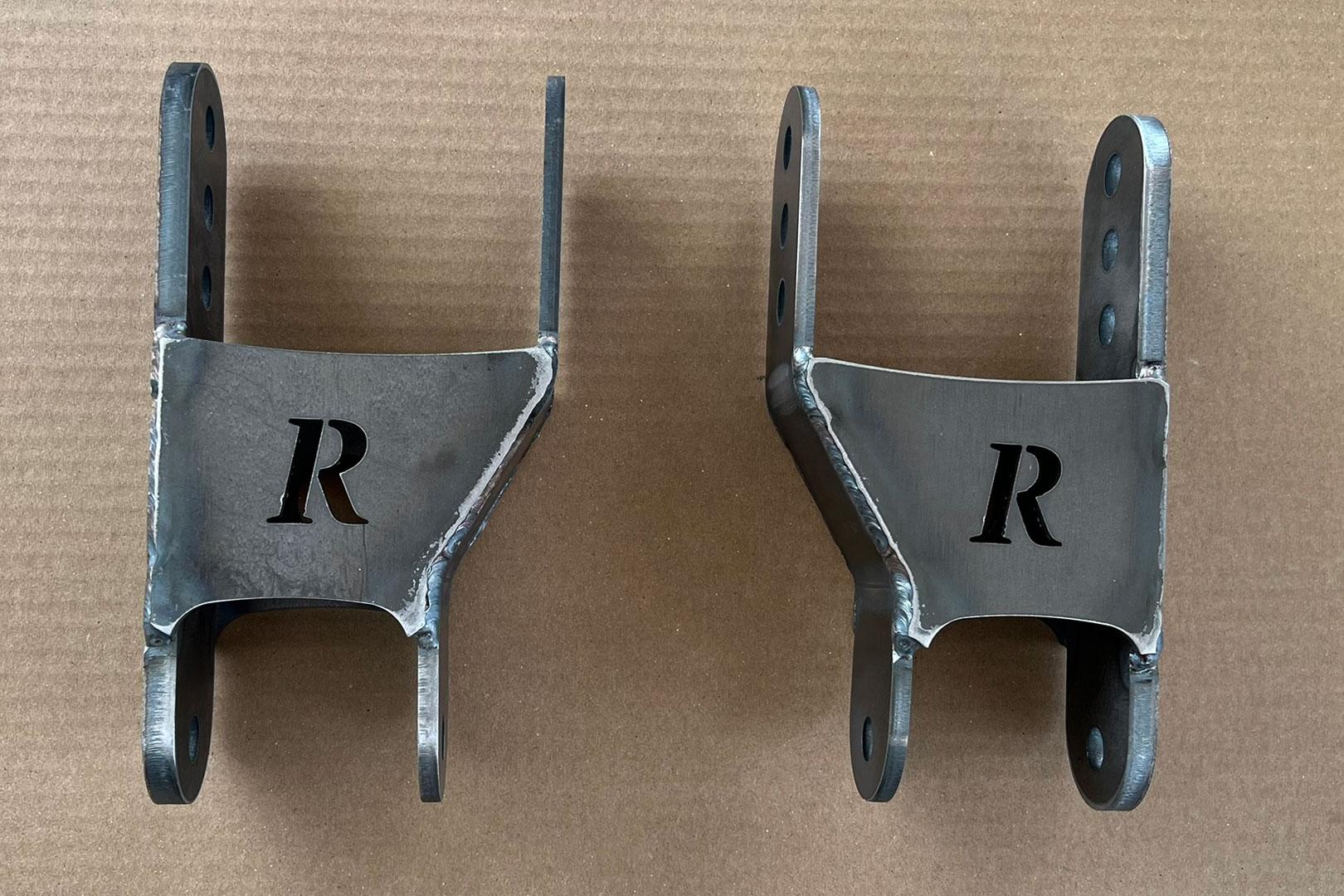

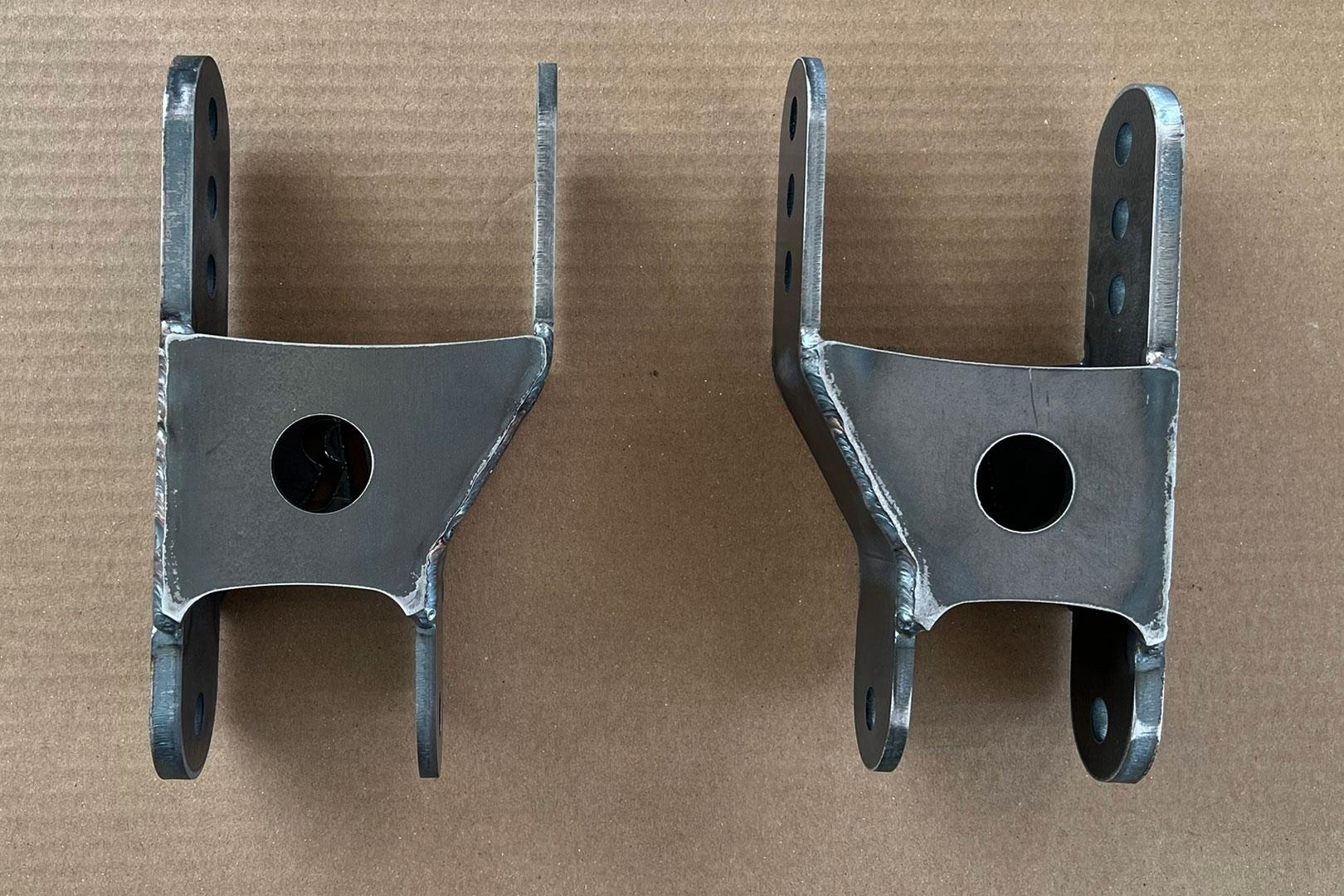

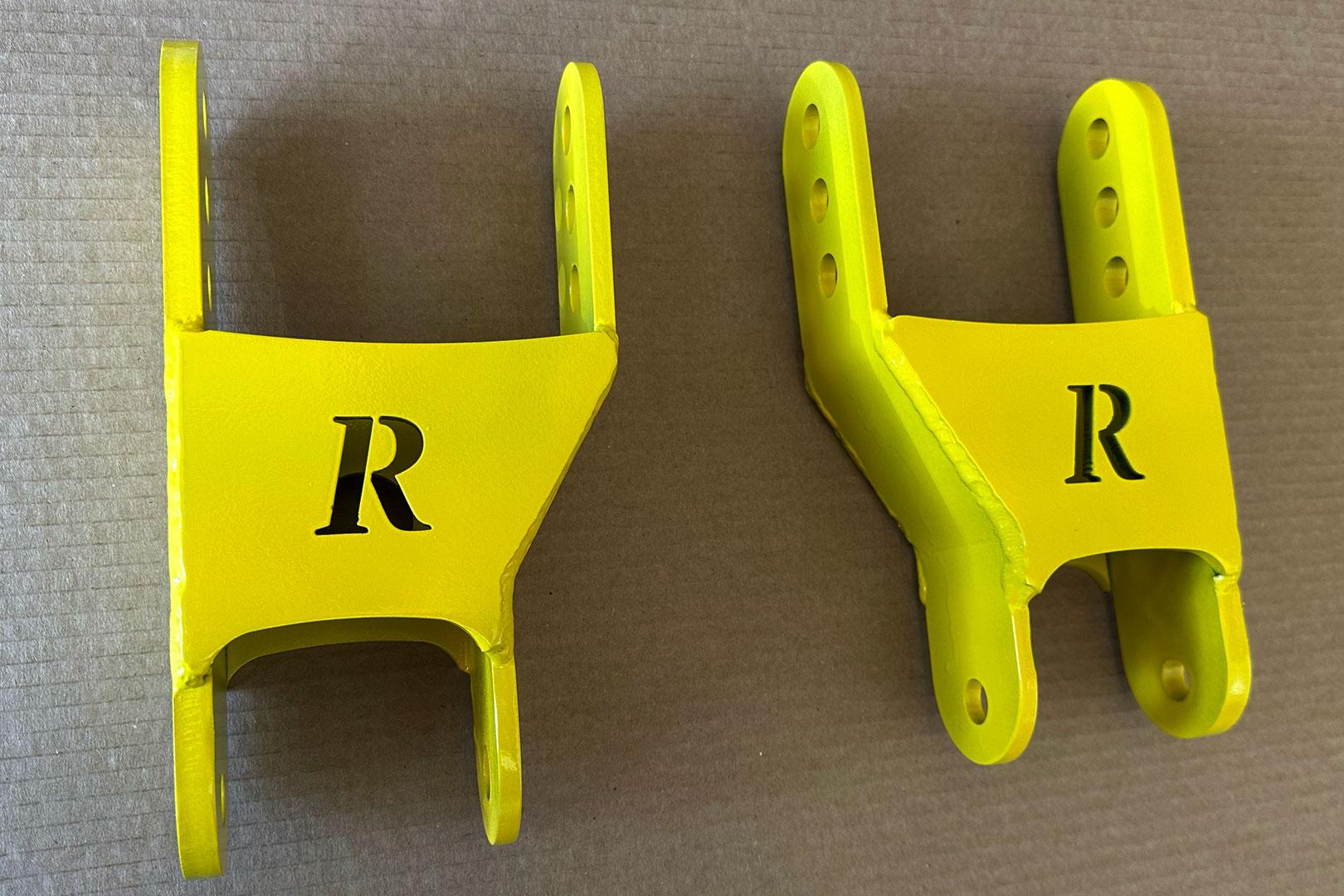

Regular shackles, circle hole on one side and R on the other side. You can pick which side to show, but both will show the same. Shown in raw metal. While sanding and painting can be an option for many items, the material and location for shackles makes more sense for powder coating.

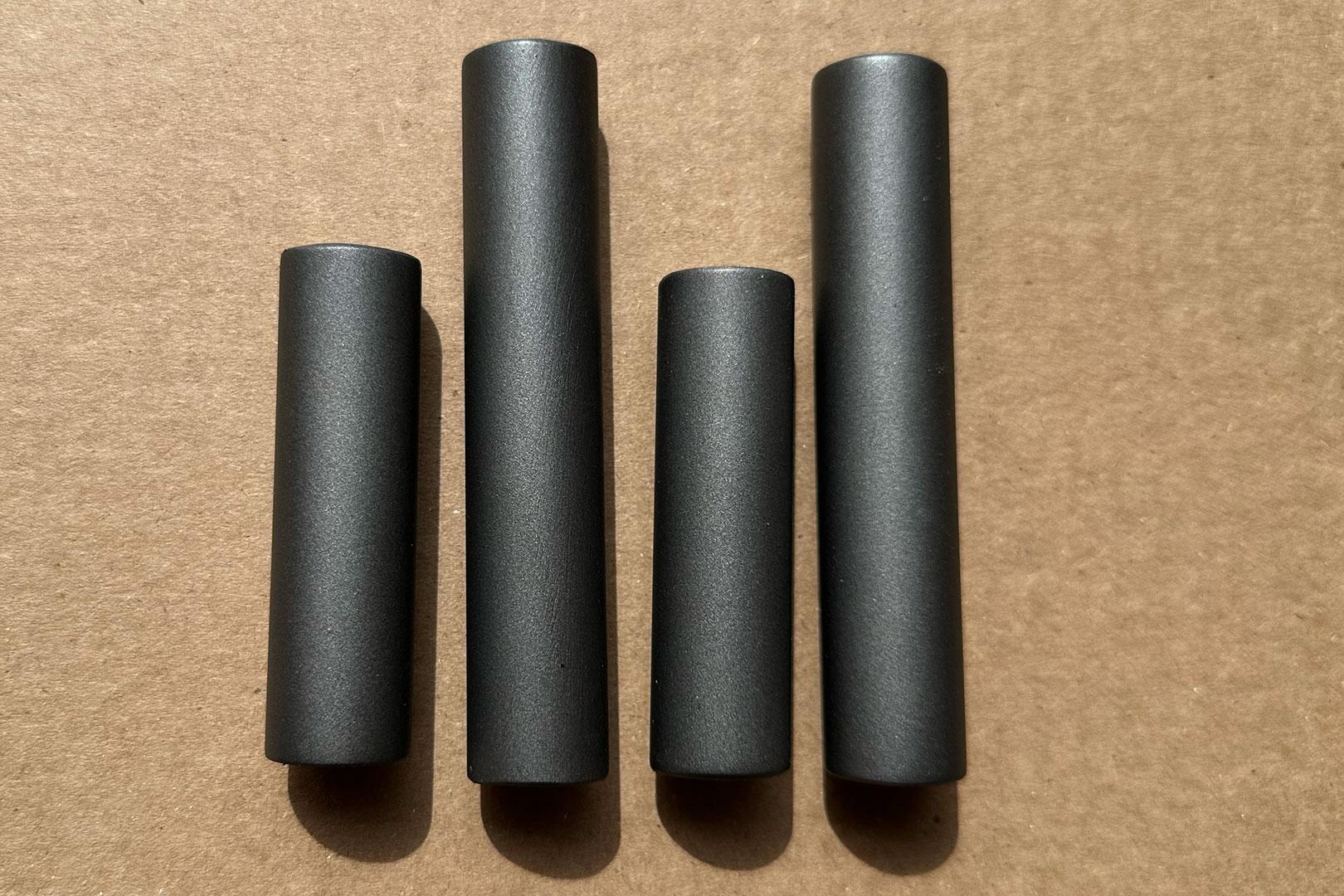

Gunmetal gray painted sleeves wrap around the bolts inside of shackles

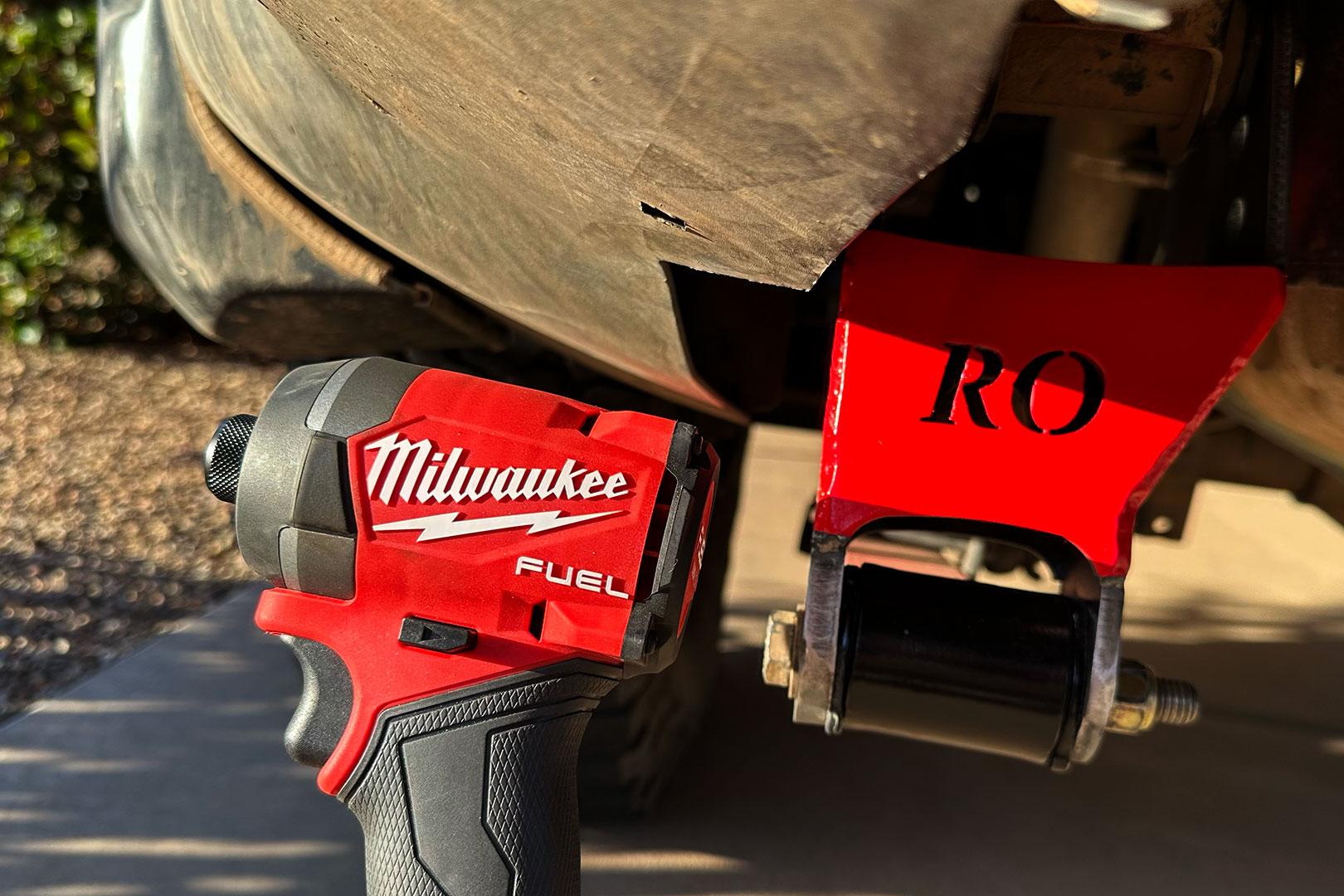

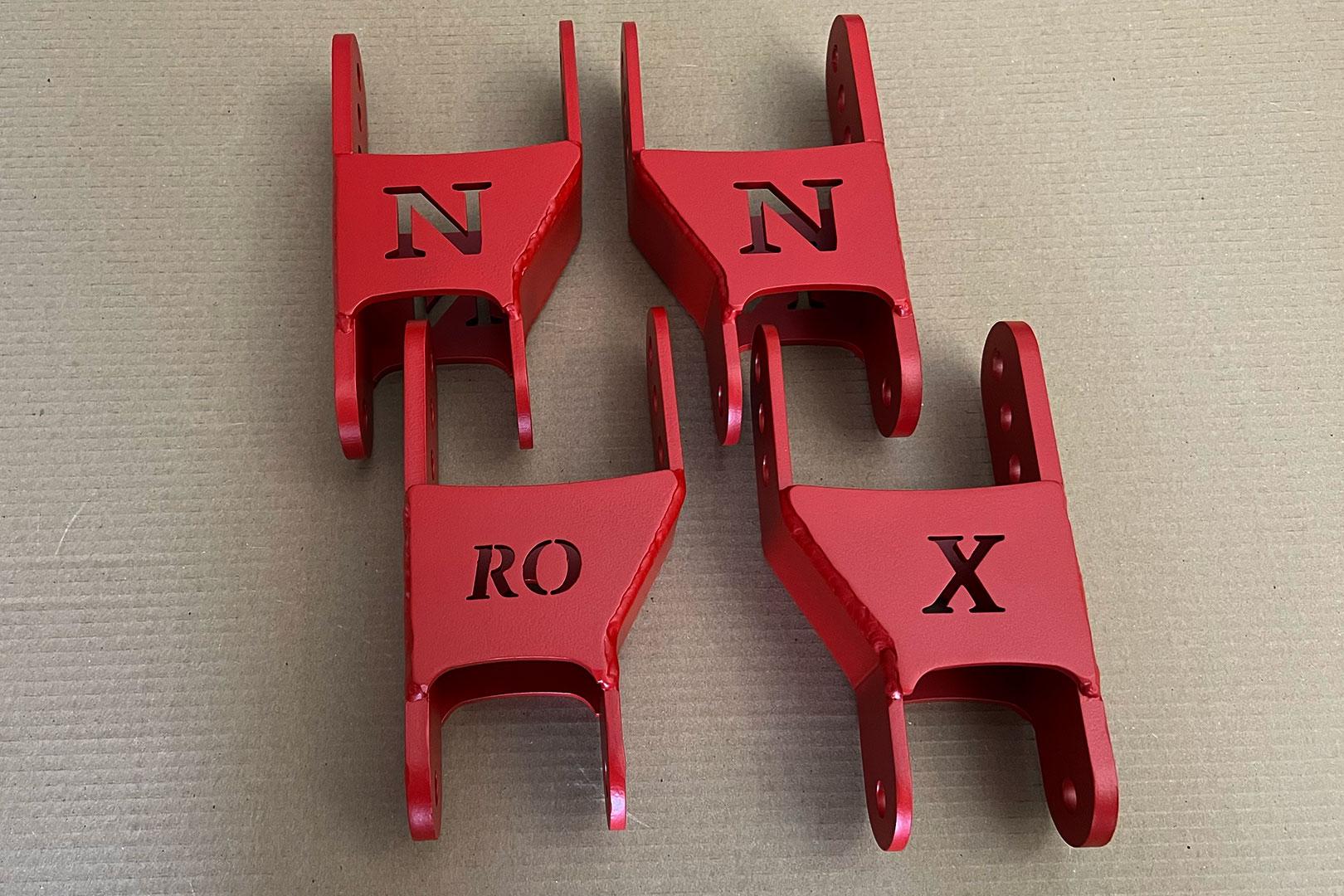

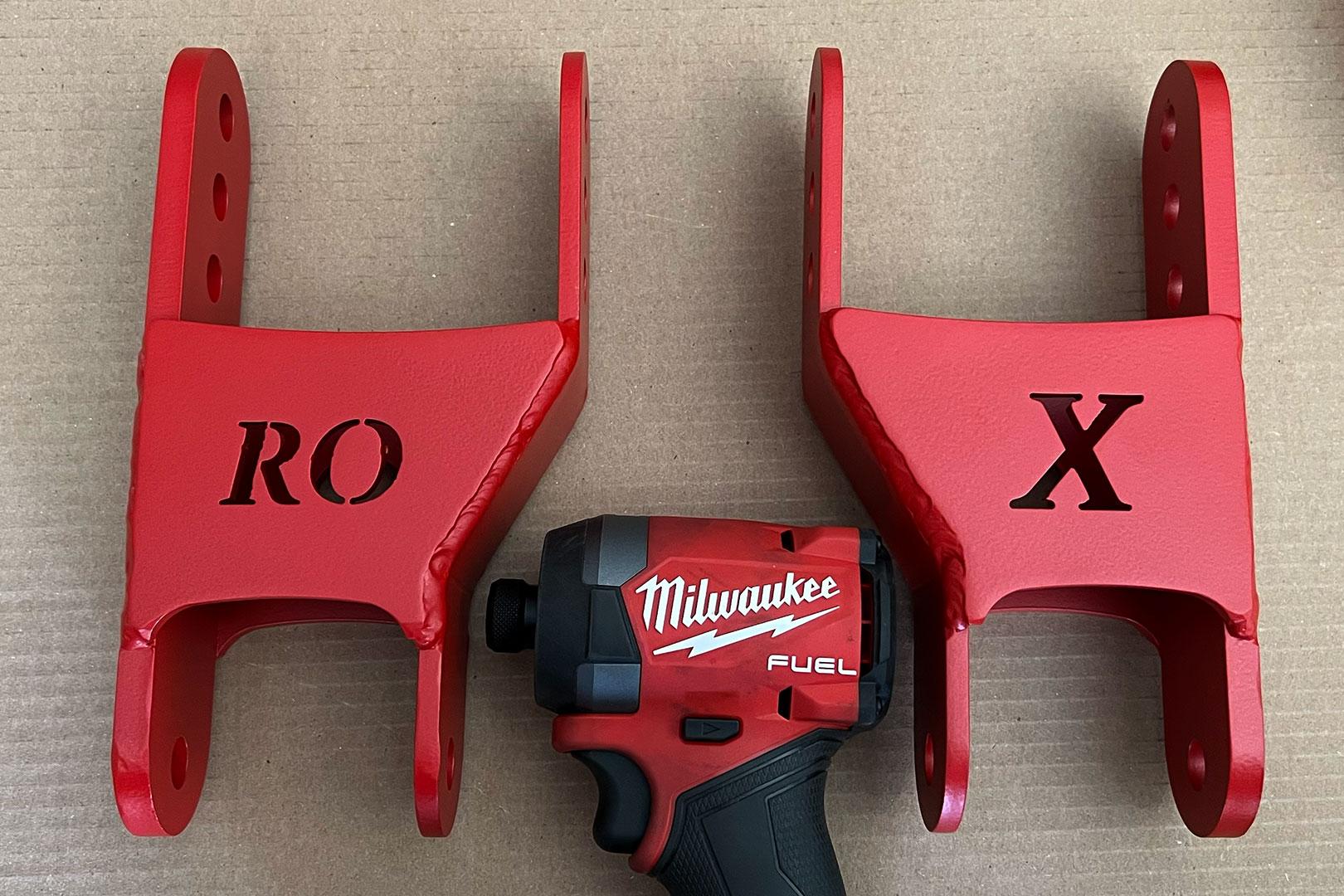

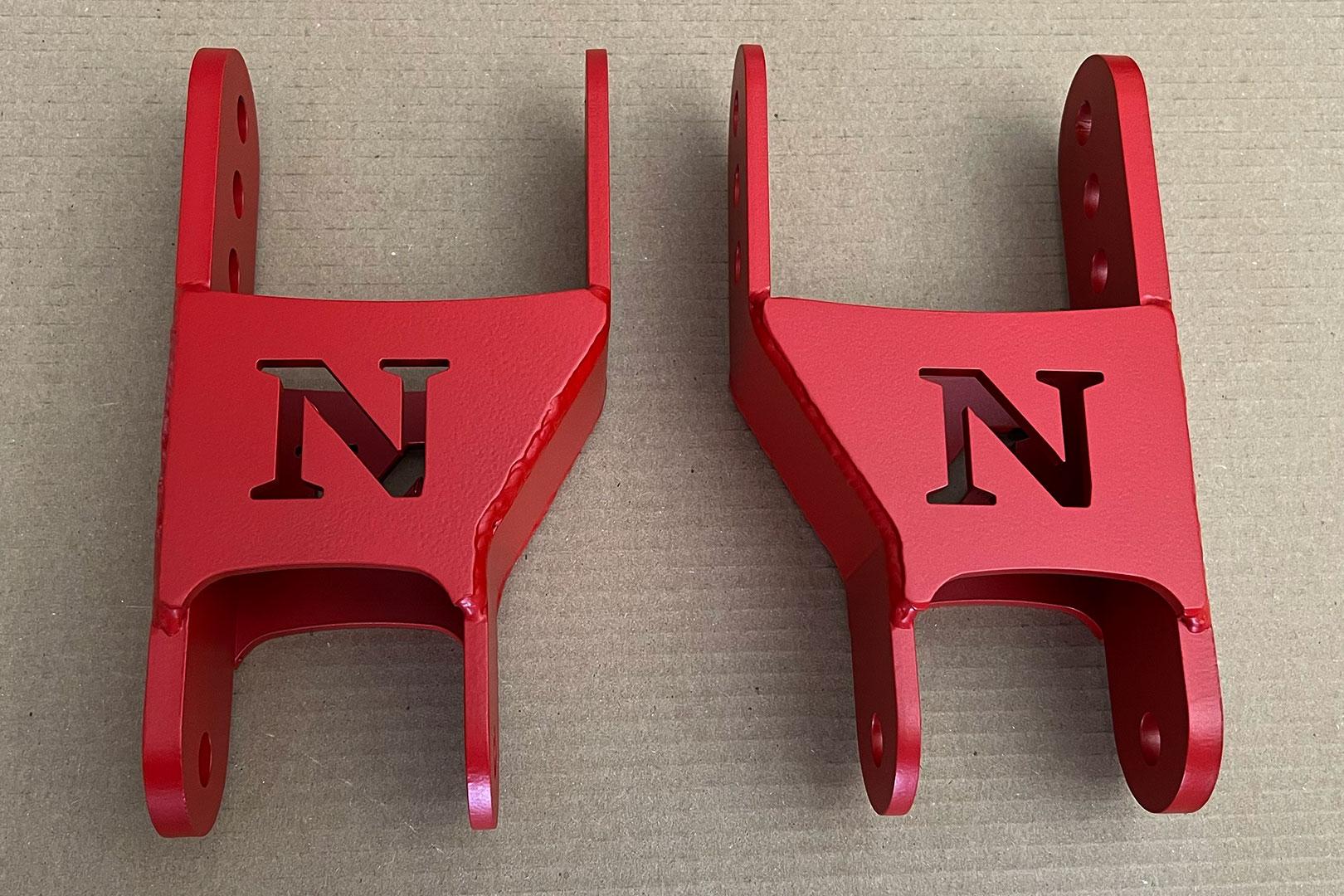

Custom logos cost extra, can be different on each side.
